Beschrijving
The Saramonic UwMic9 Kit4 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

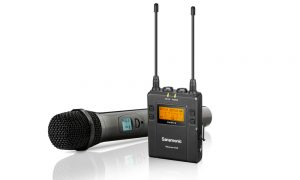

The system includes a camera-mountable wireless receiver, a wireless handheld type transmitter.
Receiver (x1)
The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
Transmitter (x1)
This compact transmitter UwMic9 HU9 features a compact, metallic body, an easy-to-read LCD display, a RF power switch and a PLL synthesizer. This broadcast-quality microphone will capture rich, crystal-clear sound. It has a built-in antenna, a muting function and power lock function.
- Reliable, broadcast-quality audio
- 514 MHz – 596 MHz
- 96 selectable channels in 2 groups
- Headphone monitoring
- Easy-to-read LCD displays
- Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
- Optional body-pack and XLR transmitters for different applications
Transmitter
| Channels: | 96 |
| Groups: | A or B |
| Oscillator Type: | PLL Synthesizer |
| Frequency Range: | 514 MHz – 596 MHz |
| Reference Deviation: | +/- 5 kHz (-60dBV, 1kHz input) |
| Signal to Noise Ratio: | 70 dB or more |
| Spur Suppression: | -60 dB |
| Voice Delay: | 12 ms |
| Antenna: | 1/4λ wire antenna |
| Audio input connector: | TX9:3.5mm mini jack HU9: noneTX-XLR9: XLR-3-11C type (female) |
| Reference audio input level: | -60dBV (MIC input, 0dB attenuation) |
| Distortion: | 0.5% or less |
| Weight: | TX9: Approx. 211.4g (excluding batteries) HU9: Approx. 338.2g (excluding batteries) TX-XLR9: Approx. 138g (Excluding batteries) |
| Battery: | Two AA size batteries |
| Dimensions: | TX9: 170.9 x 63.5 x 30.0 mm HU9: 254.0 x 52.0 x 52.0 mm TX-XLR9: 105.5 x 43 x 34.7 mm |
| Operating temperature: | 0℃ to 50℃ |
| Storage temperature: | -20℃ to +55℃ |
Receiver
| Channels: | 96 |
| Groups: | A or B |
| Oscillator Type: | PLL Synthesizer |
| Audio output connector: | 3.5mm mini jack |
| Antenna: | 1/4λ wire antenna |
| Audio output level: | -60dBV |
| Headphone output level: | 30mW (16Ω) |
| Receiver frequencies: | 514 MHz – 596 MHz |
| Signal to Noise Ratio: | 70 dB or more |
| Voice Delay: | 12 ms |
| Reference Deviation: | +/- 5 kHz (-60dBV, 1kHz input) |
| Frequency response: | 40Hz to 18kHz (+/-3dB) |
| Distortion: | 0.5% or less |
| Spur Suppression: | -60 dB |
| Weight: | 218.7g (Excluding batteries) |
| Battery: | Two AA size batteries |
| Dimensions: | 170.9 x 63.5 x 30.0 mm |
| Operating temperature: | 0℃ to 50℃ |
| Storage temperature: | -20℃ to +55℃ |
