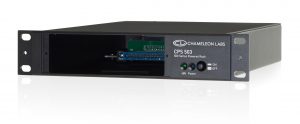

Chameleon Labs CPS503-SLV

Geschreven door peter op . Geplaatst in

239.00

Artikelnummer: 863140000213-slv Categorieën: , Tags: , , , , , , , ,

Beschrijving

THIS IS THE SLAVE MODULE, YOU NEED FIRST THE CPS503-PWR. The unit can be used as a table-top solution or can be rack mounted using available accessories. By using a special power cord, up to eight CPS503 units can be daisy-changed together using a single power supply. The enclosure provides on/off functionality for the attached unit as well as the 48V power supply. The CPS503 provides a simple, elegant solution to users that require use of a limited number of 500 Series modules.

Specifications


User Controlled Functions

  • On/Off Switch : Mounted on front panel
  • P48V ON/OFF Switch : Mounted on rear panel

Indicators

  • Power LED : Blue
  • P48 LED : Green

Power Supply

  • Configuration : External
  • Primary : 100-240V AC (50/60 Hz)
  • Secondary : +16V – 2 amps, -16V – 2 amps, +48V – 0.12 amps

Mechanical

  • 1RU half-rack steel enclosure – black powder coat

Accessories and Models

  • CPS503-PWR CPS503 with external power supply
  • CPS503-SLV CPS503 with power patch cable (requires external power supply to daisy-chain)
  • CPS-SNGL-RACK Hardware to rack-mount one CPS503 unit
