Avantone BV-1

Geschreven door peter op . Geplaatst in

1,336.00

Artikelnummer: 713757052122 Categorieën: , Tags: , , , , ,

Beschrijving

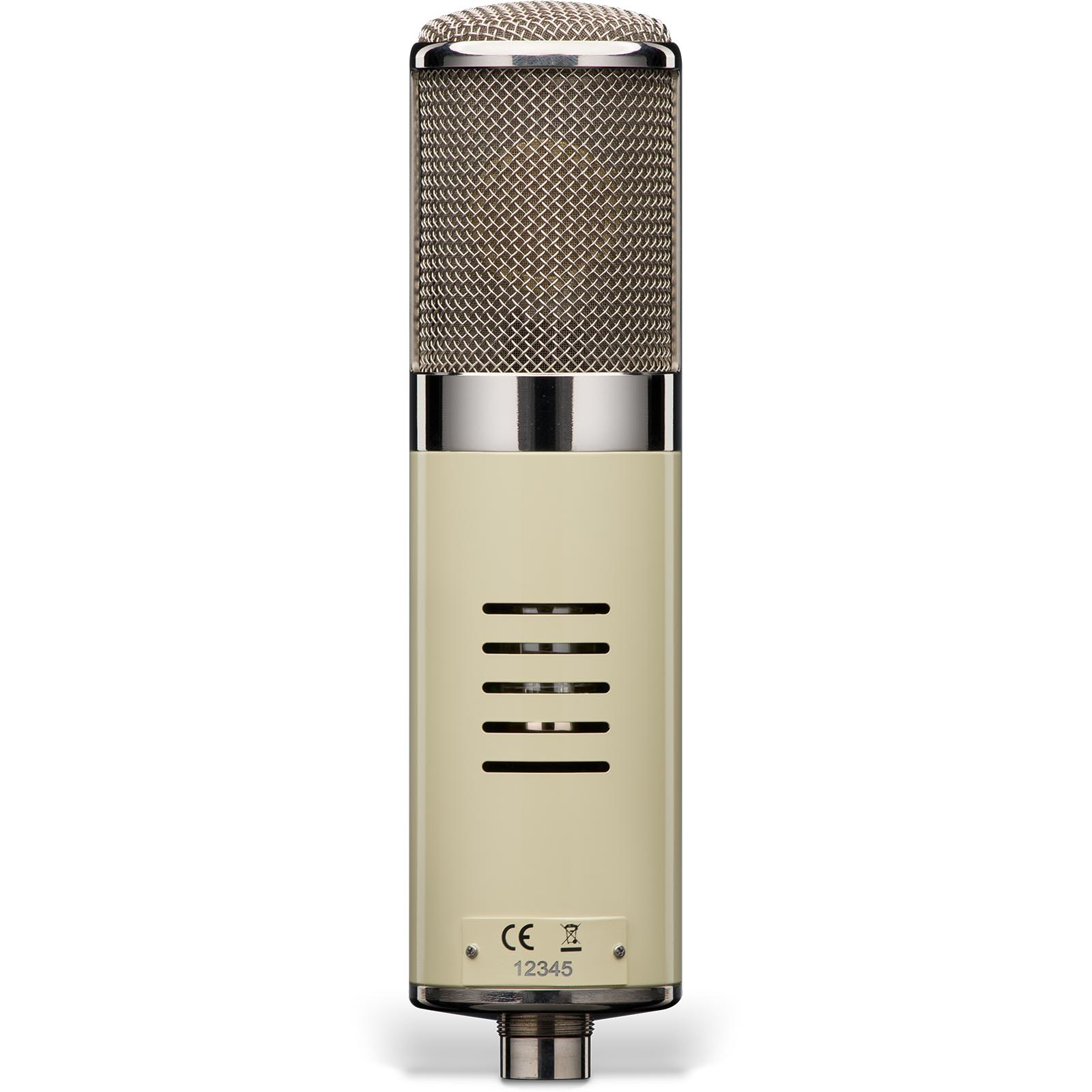

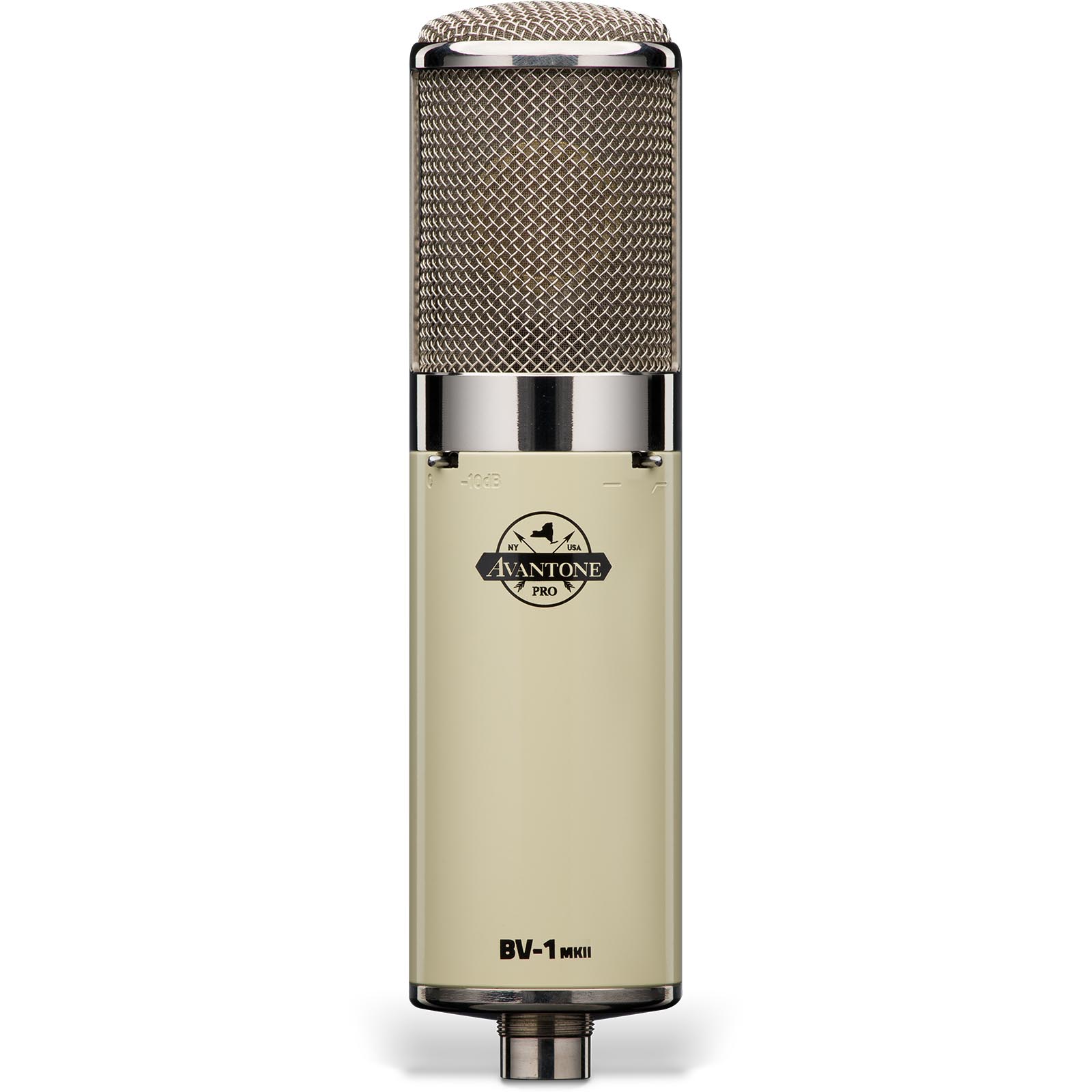

Multi-patter large capsule tube microphone. With shockmount, PSU, lead, wooden mic box and tweed kit case. Supplied with studio grade Mogami mic cable. Uses Include: Vocals, Acoustic guitar, mandolin, drum overheads, percussion, piano mic, etc… Rugged BV1 microphone body and capsule assembly are precision machined of brass. Aesthetically, it features an elegant Retro-Butter-Cream finish, accented with polished nickel trim and grill. The transformer coupled tube circuitry offers a modern-day, affordable solution to the desire to capture the character of famous European and American vintage designs. Rear vents aid in stabilizing internal temperature to help secure tube longevity.

Any studio can proudly offer the BV1 as a primary Vocal mic. It exudes class visually as well as sonically. Manufactured using premium grade resistors and capacitors along with precision machined brass structural components that yield a very solid feel, superb sonic integrity and rugged reliability. The versatile BV1 mic is able to produce professional results with an open, warm, pleasing sonic character. The included Custom Retro Shockmount is superb in allowing a precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic. 9-Pattern Tube Microphone w/ 34mm gold sputtered thin Mylar capsule assembly. -10dB pad & 80 Hz LF roll off switches.

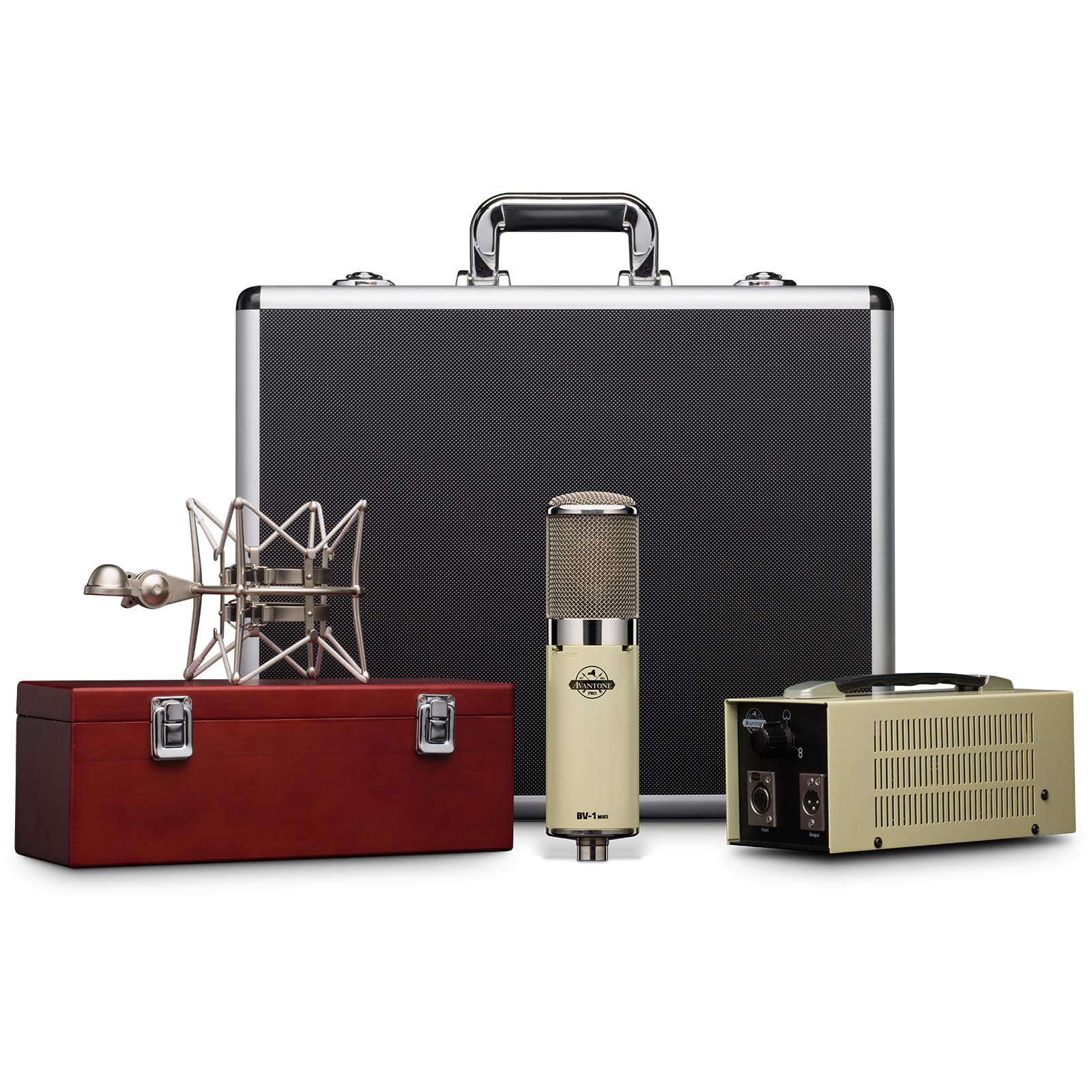

Standard Items Supplied
• Avantone BV-1

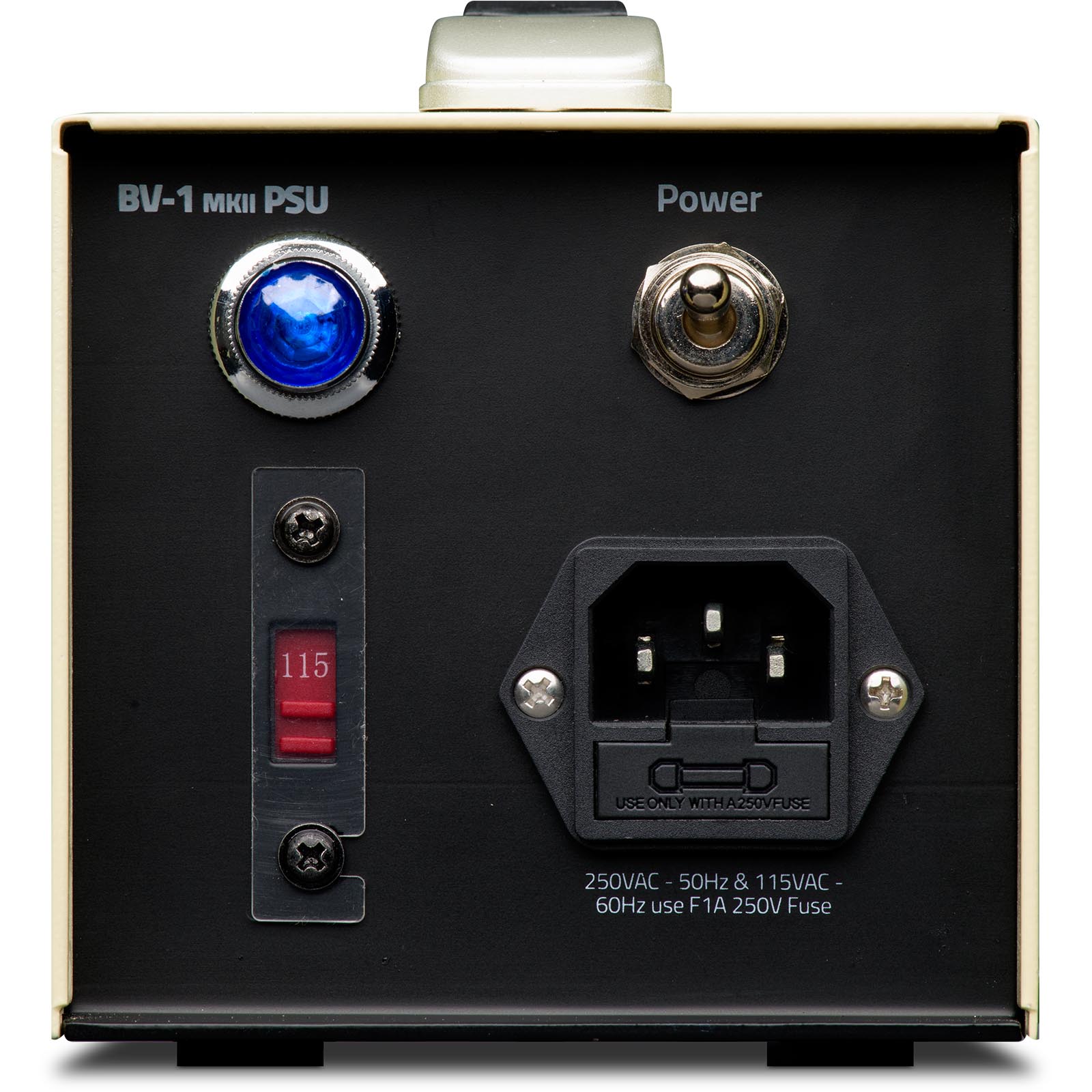

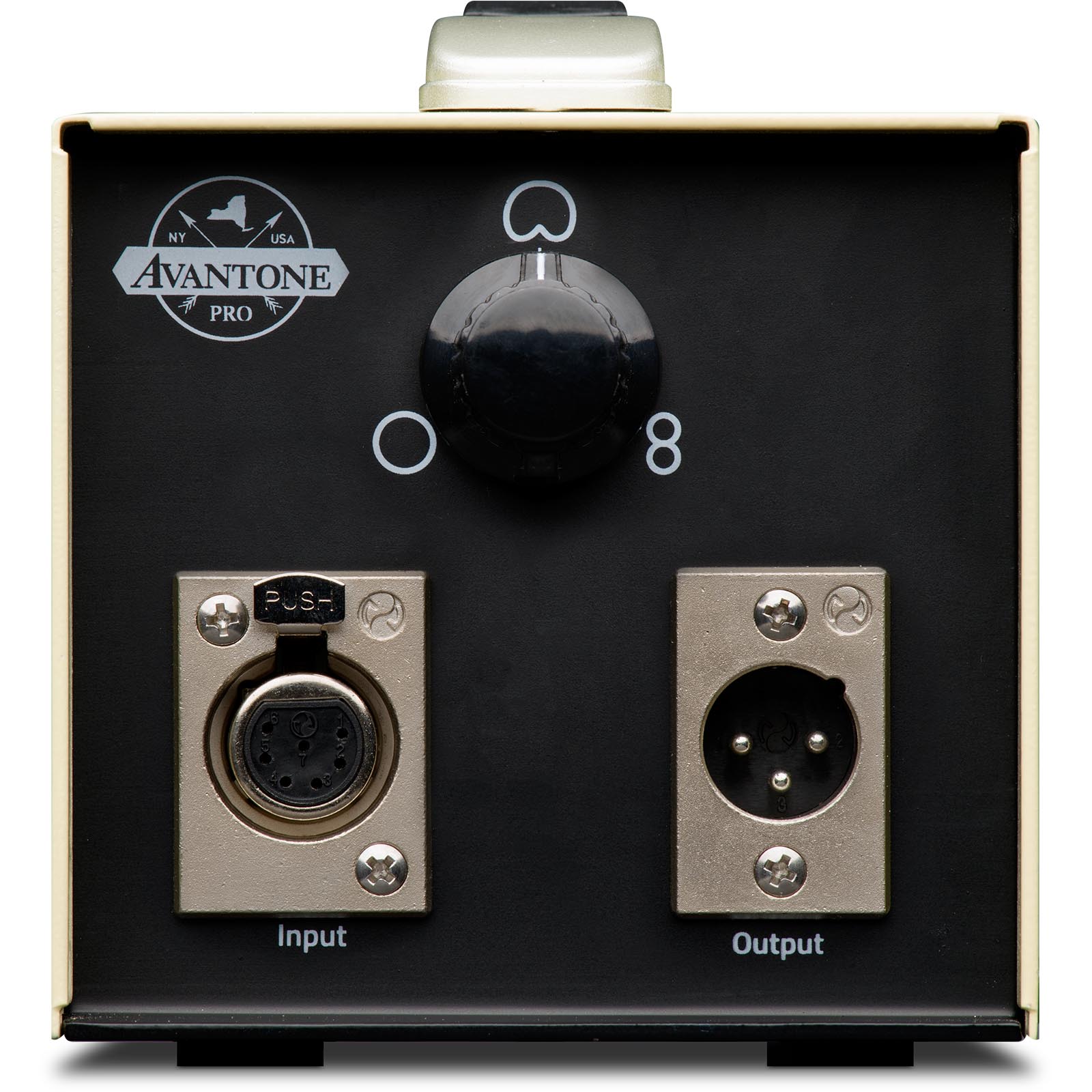

• Power Supply
• Padded Wooden Mic Box

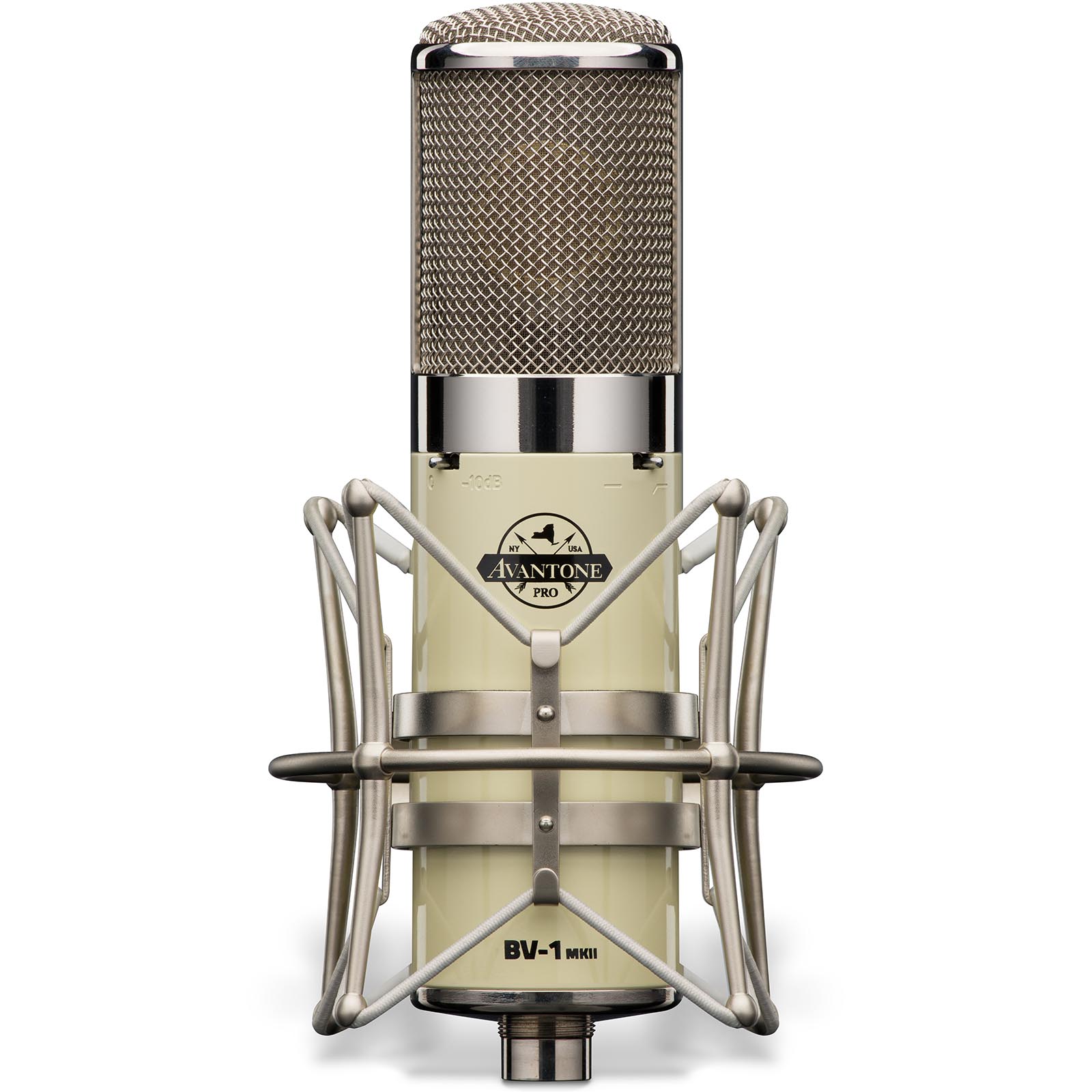

• Shockmount
• Custom Designed Tweed road case
• Removable metal pop filter
• Mic Cable

Tube Type: Select Low-Noise Russian 6072A
Polar Pattern(s): Cardioid , Hyper-Cardioid & Omni Capsules included
Capsule: Single-sided 32mm center-terminated gold-sputtered Mylar (6 micron)
Frequency Response: 25Hz-20KHz
Output Impedance: <200 Ohms / transformer isolated
Sensitivity: -35dBV
S/N Ratio: 78dB (Ref. 1Pa A-weighted)
Noise Floor: < 17 dBA
Maximum SPL: 134dB (0.5% THD @1000Hz) 144dB with pad engaged
Equivalent Noise Level: <18dB (A-weighted IEC 268-4)
Output Connector: Male XLR 7 pin
High-Pass Switch: 80 Hz 6dB/octave Switch
Attenuation Switch: -10dB Switch
Power Requirement: Standard 48 Volt Phantom / 5mA
Dimensions (Mic): 10 x 2.5 inches – 25 x 63 mm – (long x wide)
Dimensions (Case): 23 x 7.5 x 17 inches
Weight (BV-1 Mic Only): 1.3 kgs / 46 oz
Finish: Polished Nickel trim / Glossy Butter-Cream Body
