Avantone CLA-10A (Pair)
Avantone Pro is now proud to announce the release of the CLA-10A active studio monitors.
One of the most common questions asked about the CLA-10’s is which version of the originals are they based on. Now we can proudly say… all of them! The CLA-10A’s have an all new “VTPC” knob or “Variable Tissue Paper Control.” This VTPC allows you to simulate any thing from the Vertical “m” model to the horizontal “Studio” model and everything in between. This tone control allows each user to choose the best tweeter brightness that serves their individual needs.

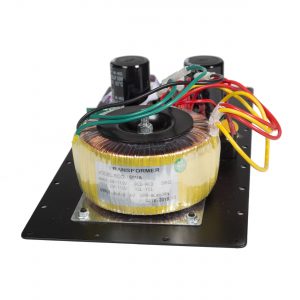

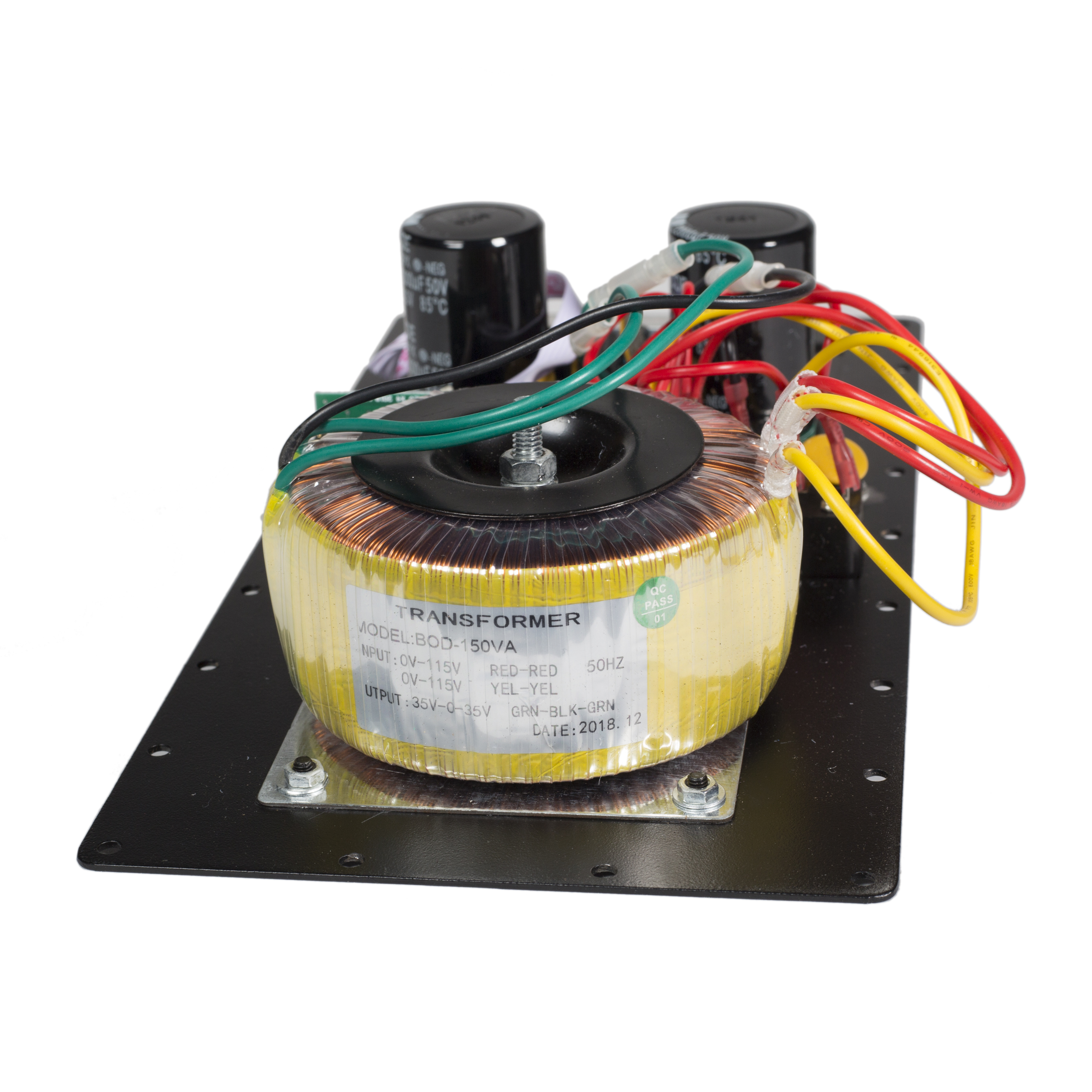

The CLA-10 Active uses a linear power supply and 200 watts of Class AB output.
One of the most common questions asked about the CLA-10’s is which version of the originals are they based on. Now we can proudly say… all of them! The CLA-10A’s have an all new “VTPC” knob or “Variable Tissue Paper Control.” This VTPC allows you to simulate any thing from the Vertical “m” model to the horizontal “Studio” model and everything in between. This tone control allows each user to choose the best tweeter brightness that serves their individual needs.
The CLA-10 Active uses a linear power supply and 200 watts of Class AB output.
• System Type: Active Full-Range Two-Way Stereo Pair
• System Frequency Response: 60Hz-20,000Hz (Accessible Musical Range)
• Components: Low Frequency: AV10-MLF 18Cm Cone, High Frequency: AV10-MHF 3.5Cm Soft Dome
• Cabinet: 10.4 Liter Sealed Design, 18mm MDF With Real Wood Veneer
• Cabinet Dimensions: 381.5mm X 215mm X197.5mm (15”X 8 ½”X 7- ¾ ”)
• Weight: 8.2Kg / 18 Lbs (Each)
• Shipping Weight: 18.5 Kg / 40.5 Lbs
• SPL: 104dB
• Peak Musical Output: 110dB (Music Program Material)
• Amplifier: 200W Class Ab Linear Supply
• THD: 0.05% At 1Khz, 1W
• Balanced Inputs: Combination XLR & Phone Jack
• Unbalanced Input: RCA Phono Jack
• Volume: +0dB, -120dB
• VTPC: Variable Tissue Paper Control Fc 1.8Khz +6dB, -30dB.
• Power: On/off Switch
• System Frequency Response: 60Hz-20,000Hz (Accessible Musical Range)
• Components: Low Frequency: AV10-MLF 18Cm Cone, High Frequency: AV10-MHF 3.5Cm Soft Dome
• Cabinet: 10.4 Liter Sealed Design, 18mm MDF With Real Wood Veneer
• Cabinet Dimensions: 381.5mm X 215mm X197.5mm (15”X 8 ½”X 7- ¾ ”)
• Weight: 8.2Kg / 18 Lbs (Each)
• Shipping Weight: 18.5 Kg / 40.5 Lbs
• SPL: 104dB
• Peak Musical Output: 110dB (Music Program Material)
• Amplifier: 200W Class Ab Linear Supply
• THD: 0.05% At 1Khz, 1W
• Balanced Inputs: Combination XLR & Phone Jack
• Unbalanced Input: RCA Phono Jack
• Volume: +0dB, -120dB
• VTPC: Variable Tissue Paper Control Fc 1.8Khz +6dB, -30dB.
• Power: On/off Switch
