Beschrijving

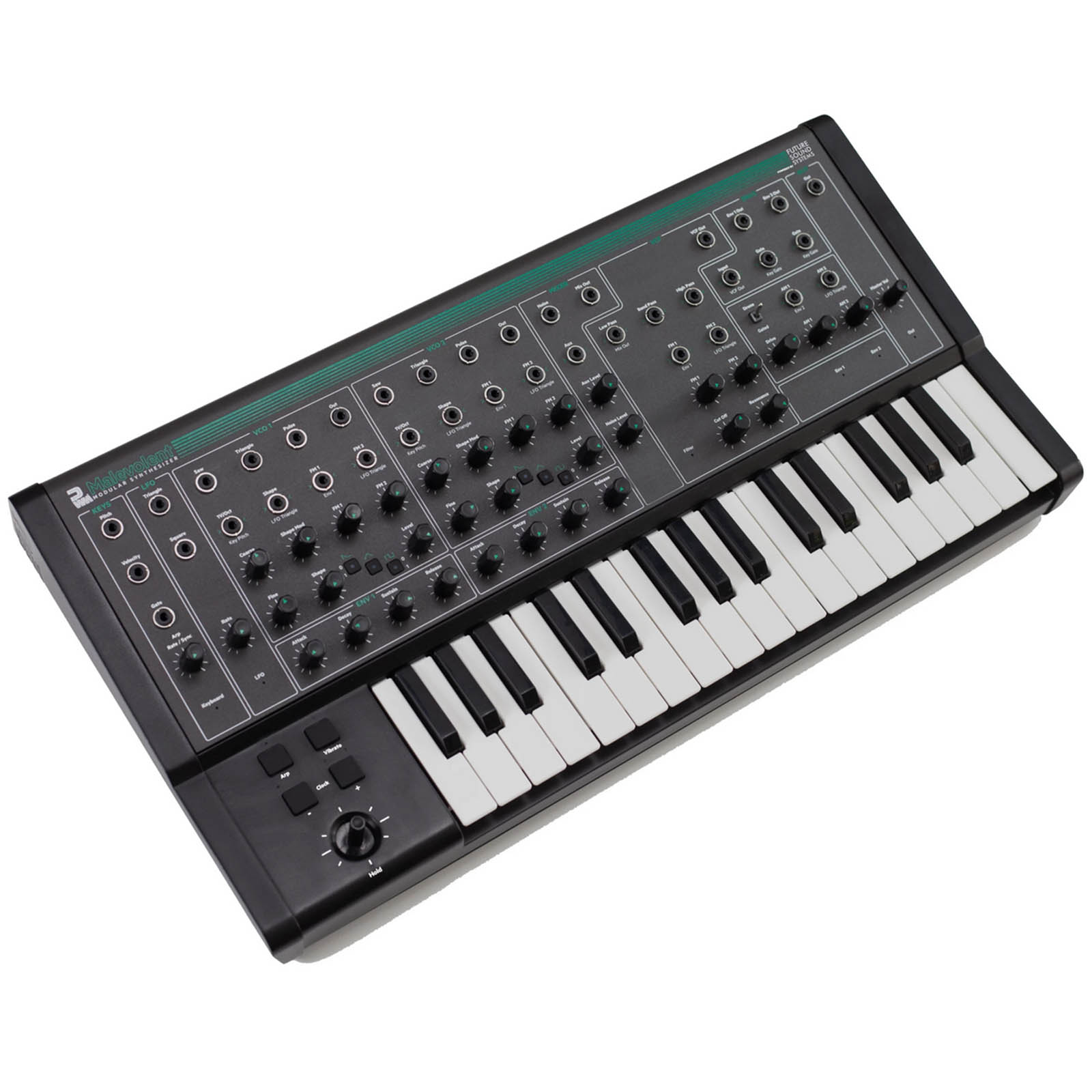

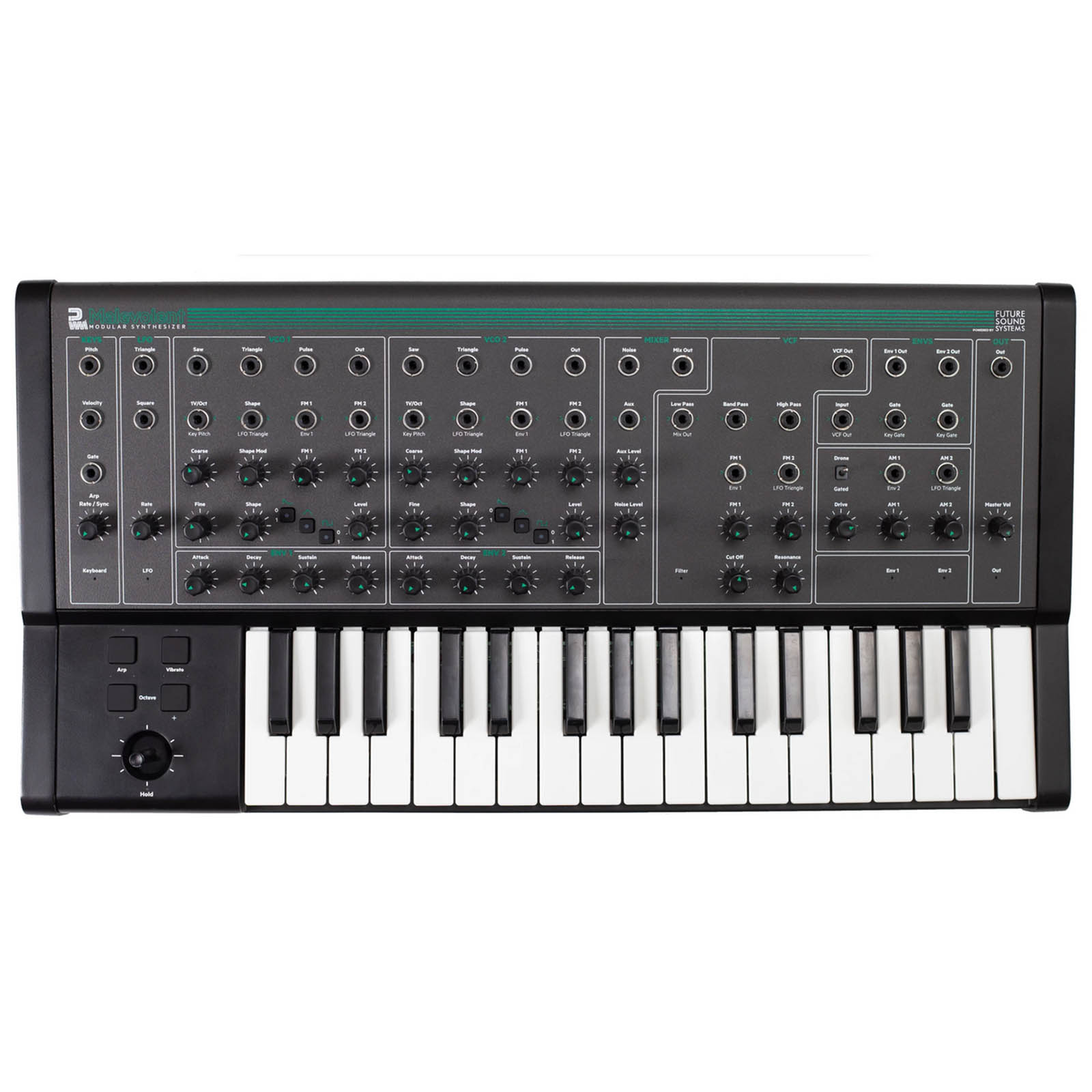

– Modular Pure Analogue Synthesiser
* Pure Analogue signal path designed by Future Sound Systems * Pure VCOs

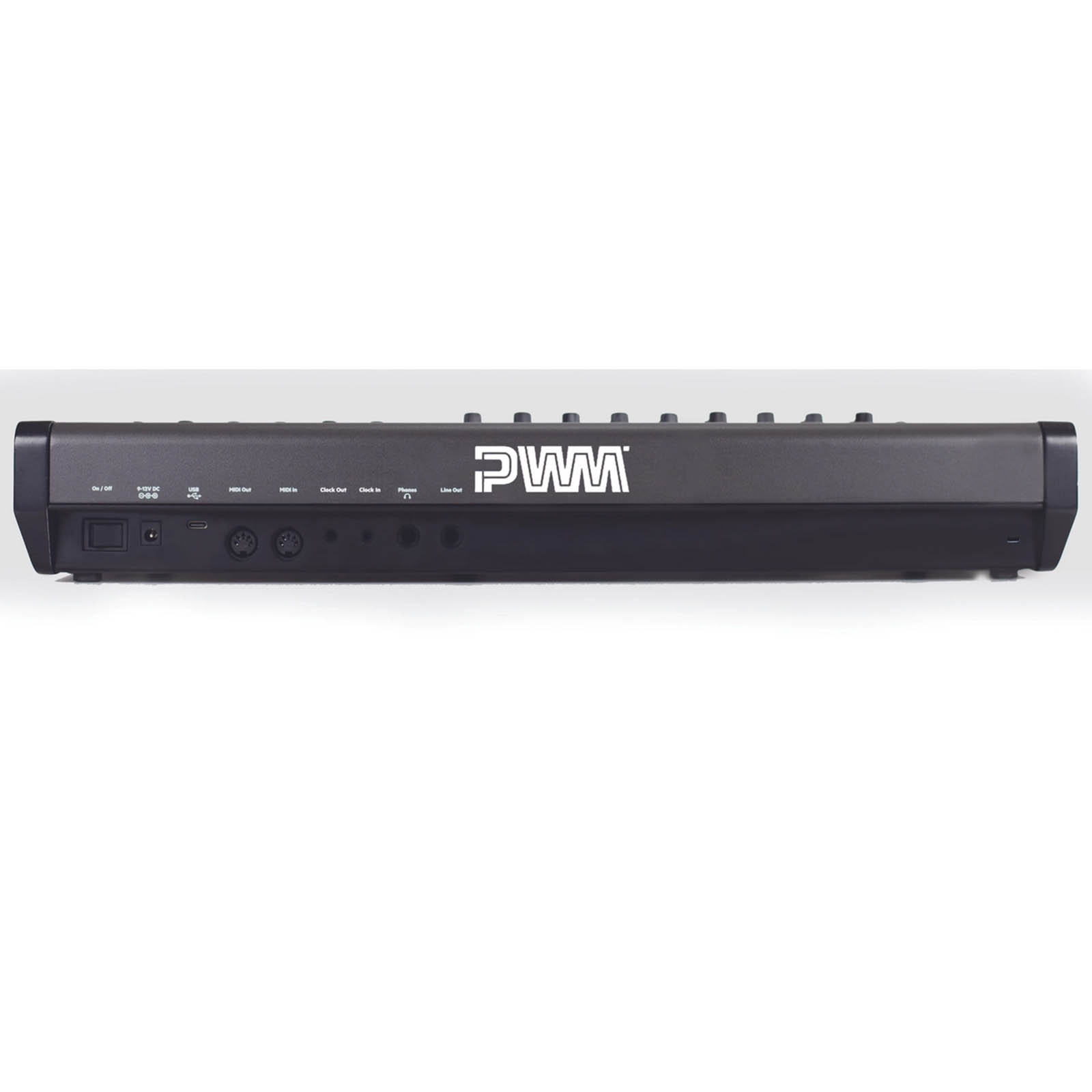

* 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching * Normalised signal path for immediate sound Malevolence * Additional rear panel line out * Additional headphone out
* 2 Voltage Controlled Oscillators * Saw / Triangle / Pulse outputs plus Mix for each oscillator * 1V/Oct pitch control input * Shape control / pulse width modulation input * 2x Frequency Modulation inputs * Coarse / Fine tune control * Shape mod amount control * FM1 and 2 mod amount controls * Shape control * Selectable waveforms for the mix output * Individual osc level control
* LFO (Low Frequency Oscillator) * Triangle / Square wave outputs * Rate control
* 2x Envelopes * Individual ADSR controls for each envelope * Individual gate inputs * Individual envelope outputs
* Multi-mode 2 pole VCF (Voltage Controlled Filter) * Low pass / Band pass / High Pass individual inputs * 2x Frequency Modulation inputs with amount controls * Filter cutoff * Filter resonance
* Mixer * Noise w/level control * Aux input w/level control
* VCA (Voltage Controlled Amplifier) with overdrive control
* Compatible with Eurorack standard 1V/Oct gear
* Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope
* USB bus-powered
* MIDI In / Out
* Headphone out
* Line out
* Analogue clock in & out
* USB-MIDI to 1V/Oct CV & gate conversion * All pitch and gate control is fully analogue * Analogue clock In / Out
* Multi-function Joystick control * Left / right for pitch bend * Performable portamento * Performable vibrato * This is in addition to the analogue LFO * Latching hold mode
* Arpeggiator * 6 arpeggiator types * Up, Down, Up/Down 1, Up/Down 2, Played & Random * Auto clock sync * Detects analogue / MIDI or USB-MIDI clock and synchronises the arpeggiator automatically * Selectable sync rates when clock detected * Rate / sync control * Latch * 6 Octave range * Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running
* Keyboard Control * 32 Velocity-sensitive mini-keys * Octave shift +/- 4 octaves * Pitch output * Velocity output * Gate output
* Local Off mode for DAW use
Includes:
* 5 Patch cables
* Power Supply (9V 600mA) * USB C lead
* Getting Started Guide
