Saramonic UwMic9S Kit1

Geschreven door peter op . Geplaatst in

329.00

Artikelnummer: 6971008027815 Categorieën: , , Tags: , , ,

Beschrijving

Wireless Microphone System

The Saramonic UwMic9s wireless microphone system provides a premium 2-person wireless audio solution for Broadcast &TV,ENG,filmmakers,vloggers,mobile journalists and content creators for a remarkable price,It is an easy-to use,high-quality and flexible UHF system,The external input allows the receiver to be connected to a mic or line level device,such as a shotgun microphone,mixer,recorder or music player to capture additional sound or music.The system can be powered through its USB-C ports,allowing it to run for numerous hours on a USB-C 5V power bank.

RX9S Portable Receiver

The Saramonic UwMic9s RX is a camera-mountable dual-channel UHF wireless receiver.It features wide switching RF bandwidth,a high-contrast OLED display and infrared,synchronization between transmitter and receiver.The two detachable antennas can be rotated 360° for better reception.The receiver’s output can be toggled between mono and stereo modes,The low-cut function on the receiver minimizes low-frequency rumble.

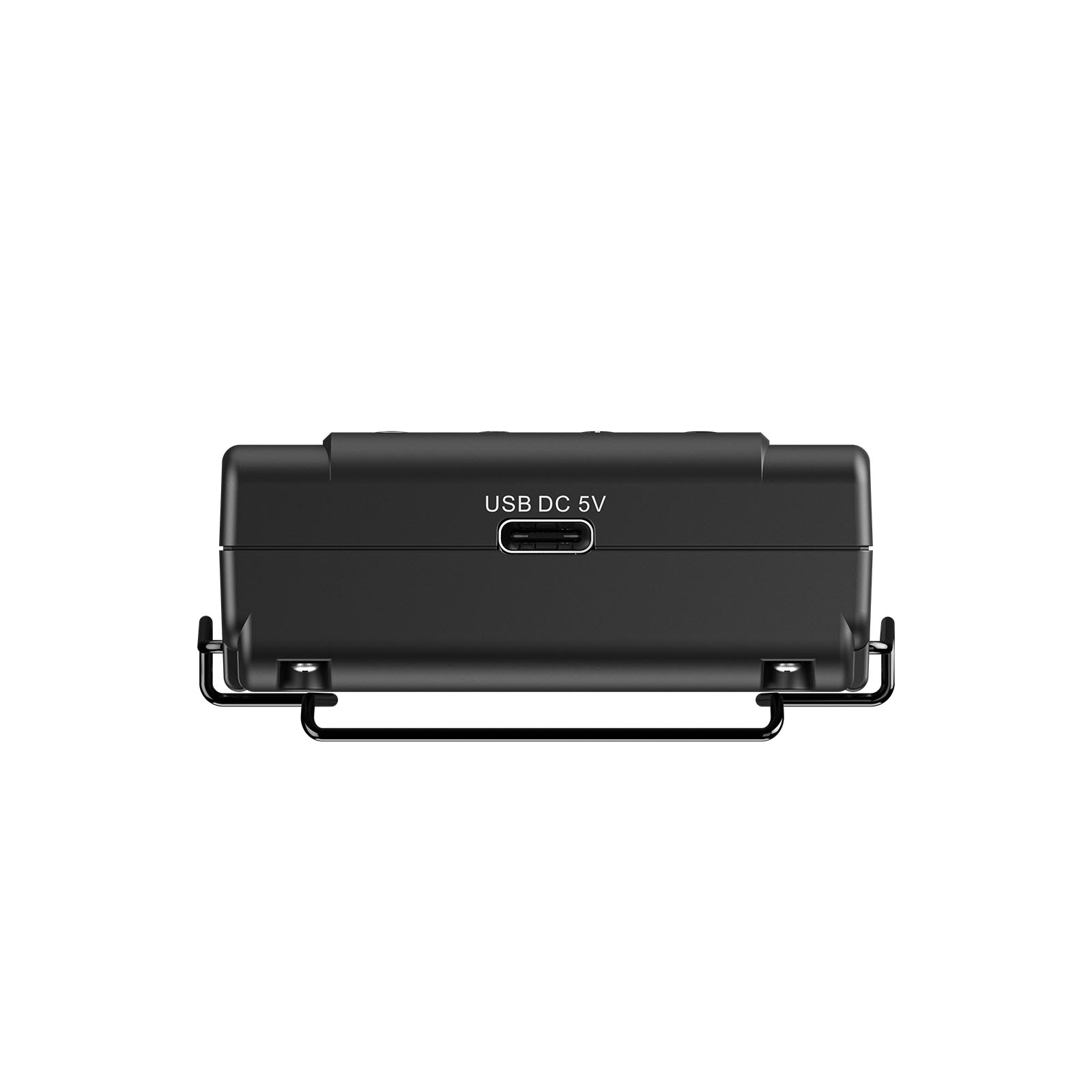

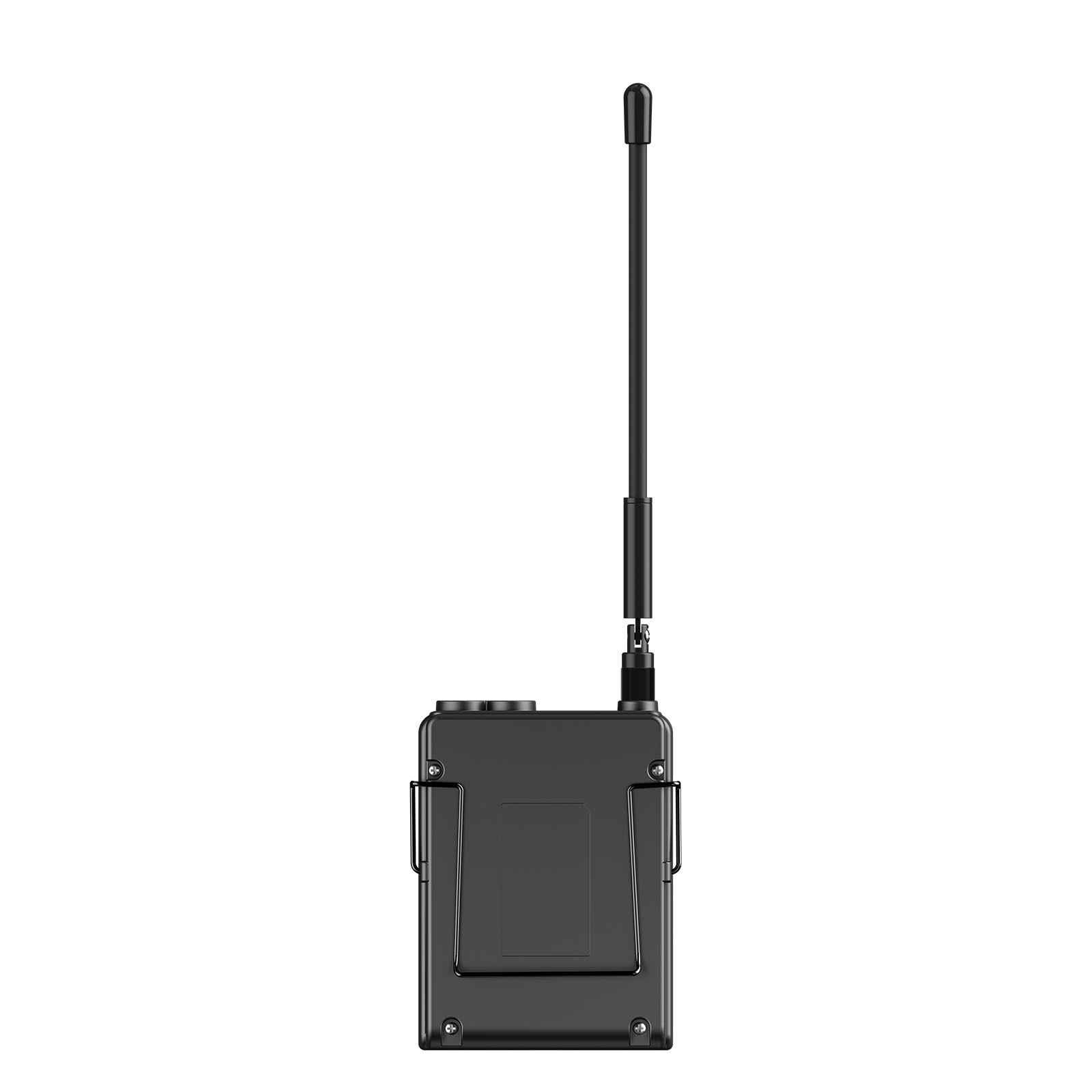

Body-pack Transmitter TX9S

The Saramonic UwMic9S-TX9S is a mountable body-pack transmitter.It features an easy-to-read OLED display,a detachable antenna and built-in rechargeable batttery.with the line input and mic input jack,it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices,A short press of the power button mutes the mic between takes.The locking function prevents the transmitter from being muted or turned off accidentally.
  • Delivering professional broadcast-quality sound
  • Low-cut function for low-frequency noise canceling
  • Infrared pairing function
  • Mono/Stereo mode switchable
  • Vivid High-contrast OLED display
  • Detachable and 360°switchable antenna
  • ON/OFF physical switches for group channel A and B
  • Independent left and right channel outputs
  • Built-in rechargeable Li-ion battery
  • Mic and Line input for multi-layered content creating
  • Headphone monitoring available
  • Watertight suitcase included

Receiver RX9S

 Channel number:  96
 Frequency Response:  A and B
 Oscillator type:  PLL synathesizer
 Audio output connector:  3.5mm mini jacks(A and B channel output), 3.5mm headphone output
 Audio input connector:  3.5mm mini jack(MIC IN/Line In jack)
 Antenna:  1/4λ wire antenna
 Audio output level:  -60 dBV
 Headphone output level:  30mW(16Ω)
 Receive frequencies:  514MHz-596MHz
 Receive sensitivity:  -95dBm
 Signal-to-noise ratio:  75dB or more
 Reference deviation:  ±5kHz(-60 dBV,1kHz input)
 Frequency response:  40Hz to 18kHz(+/-3dB)
 Distortion  0.2% or less
 Spur suppression  -60dB
 Reference audio input level  -60dBV(Mic input,0dB attenuation)
 Built-in battery capacity  2000mA
 Power Requirements  Built-in Li-ion Battery or USB-C DC 5V
 Continuous use time  8 hrs
 Dimension  220×64×25mm
 Weight  193g(6.8oz)
 Operating temperature  0℃ to 50℃
 Storage temperature  -20℃ to +55℃

Transmitter TX9s

 Channel number:  96
 Frequency Response:  A and B
 Oscillator type:  PLL synathesizer
 Carrier frequencies:  514MHz-596MHz
 Reference deviation:  ±5kHz(-60 dBV,1kHz input)
 Signal to noise ratio:  75dB or more
 Spur suppression  -60dB
 Voice delay  12ms
 Antenna  1/4λ wire antenna
 Audio input connector  3.5mm mini jacks(MIC IN and LINE IN jack)
 Reference audio input level  -60dBV(MIC input,0dB attenuation)
 Distortion  0.2% or less
 Built-in battery capacity  2000mA
 Power Requirements  Built-In Li-ion Battery or USB-C DC 5V
 Continuous time  8hrs
 Dimensions  220*64*25mm
 Weight  157g(5.5 .oz)
 Operating temperature  0℃ to 50℃
 Storage temperature  -20℃ to +55℃
