Beschrijving
Features:
- Modern / Vintage switch isn’t just some gimmick, or voice-trickery — the entire circuit reconfigures itself to the original specifications, and energizes the capsule to the same specifications.
- Custom United 24k gold sputtered dual diaphragm/dual backplate K87 style capsule.
- Custom wound, American-made United transformer with 4x the iron mass of “other 87s”.
- The only “87-style” microphone that has options to engage/disengage it’s RF filter — a modular approach that captures both versions of the classic, as well as combinations inbetween!
- True-cardioid mod built right in; the very same modification done to vintage microphones by the most demanding of engineers, without sacrificing polar pattern selection.
- Absolute workhorse, a desert-island microphone for professional studios and voiceover work.
- Clean, clear, articulate, open sound. Low noise and high headroom and dynamic range.
Specifications:
- Type: Condenser Microphone
- Capsule: UT Series, 34mm brass, insulated dual backplate K87
- Diaphragm: Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film)
- Power Supply: +48v Phantom Power (via XLR)
- Ground: Pin 1 XLR (required)
- Frequency Response: 20 Hz – 20 kHz
- Polar Pattern: Cardioid, Figure 8, Omni
- SPL: 136 dB (145 dB w/ Pad) @ <.5% THD
- Output Impedance: 27 Ω
- Amplifier Type: Field Effect Transistor
- Self Noise: <10 dB (cardioid setting, no pad, no HPF)
- Output: Custom-wound UT Series transformer, made in USA
- Body: Nickel electroplated, solid milled brass
- High pass filter: 80hZ (12dB down point)
- Pad: -10dB
- Connector: 24k gold plated XLR, pin 2 HOT, pin 1 GND

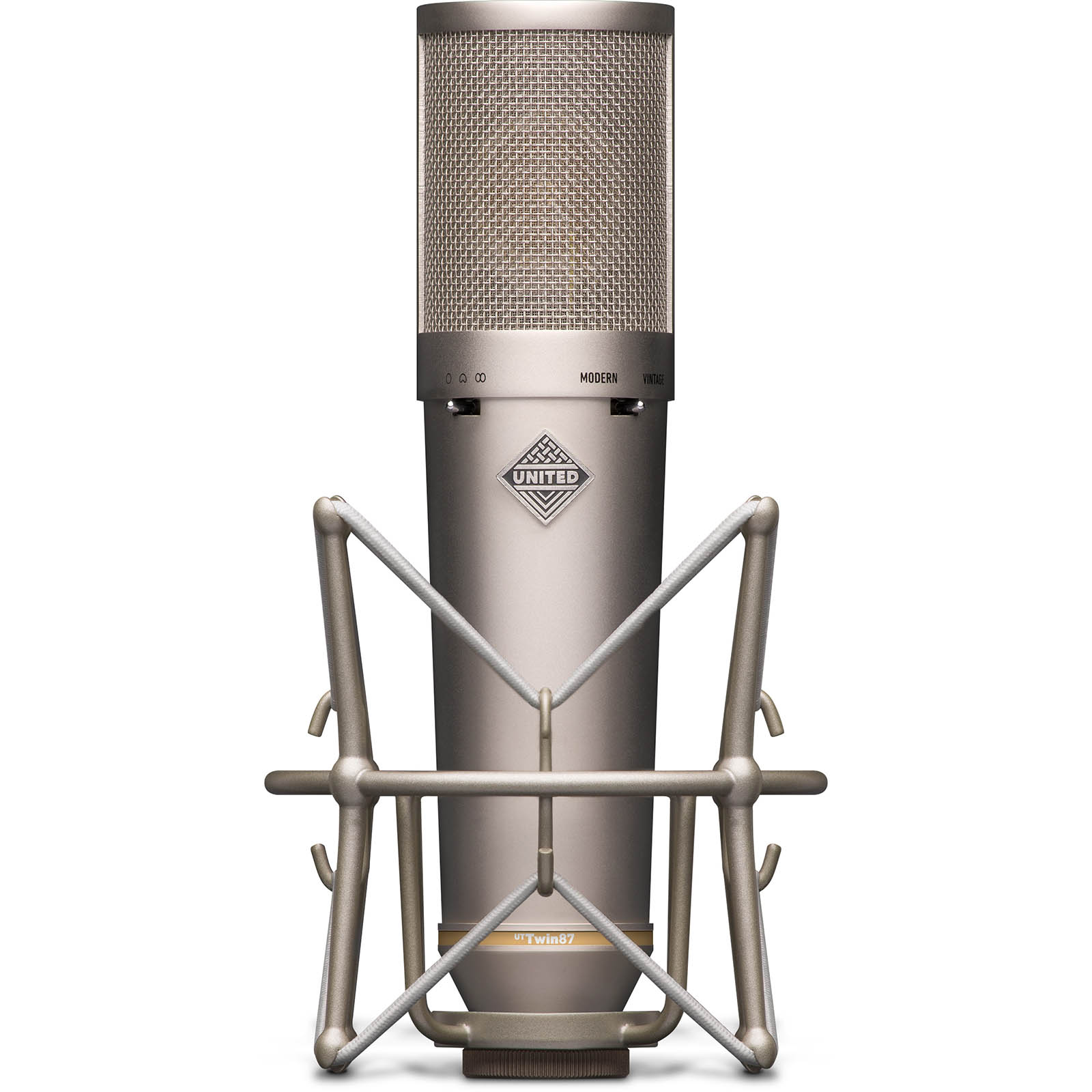

- Mount: Suspension type shock mount (coming soon)
- Dimensions: Height: 220mm / 8.6 in.
- Diameter: 55mm / 2.2 in.
- Shockmount Depth: 190mm / 7.5 in.
