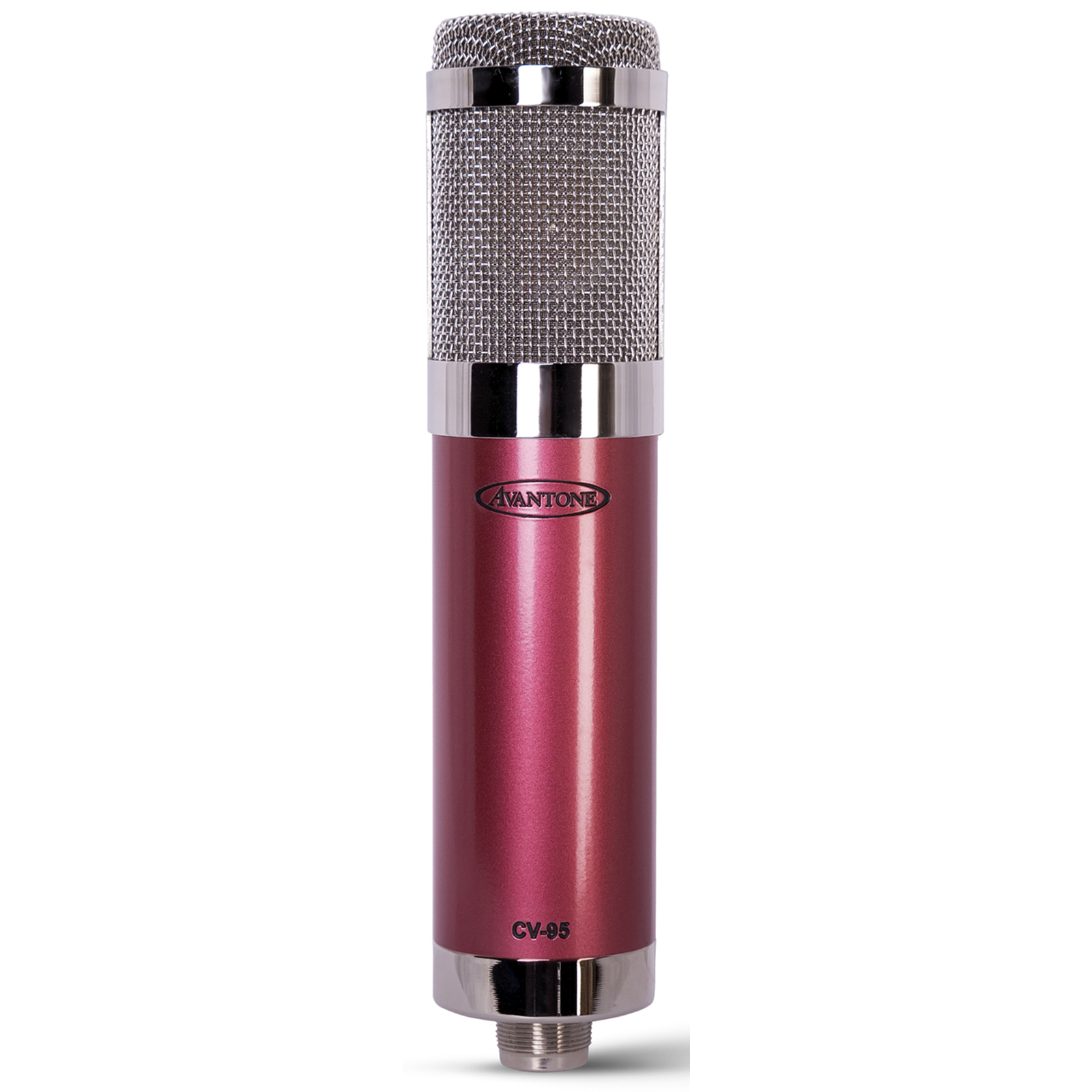

Avantone CV-95

Geschreven door peter op . Geplaatst in


Artikelnummer: 0852437001101-1 Categorieën: , Tags: , , , , ,


Large capsule Multi-Pattern Tube Condenser Microphone, inc shock mount, wooden mic box, PSU and metal carry case. Manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability. The versatile CV-95 mic is able to produce professional results with a warm, pleasing sonic character. The included Custom Retro Shockmount is superb in allowing a precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic. This isolation allows for superior professional results. The PS-1BV power supply offers access not only to the above OMNI, CARDIOID, and FIGURE-8 patterns but also 6 “in-between” settings. Most vocals will be best suited to Cardioid pattern but you may experiment to satisfy yourself. The omni-mode works well in some rooms for ambient room mic usage.

Standard Items Supplied
• Avantone CV-95 Tube Microphone

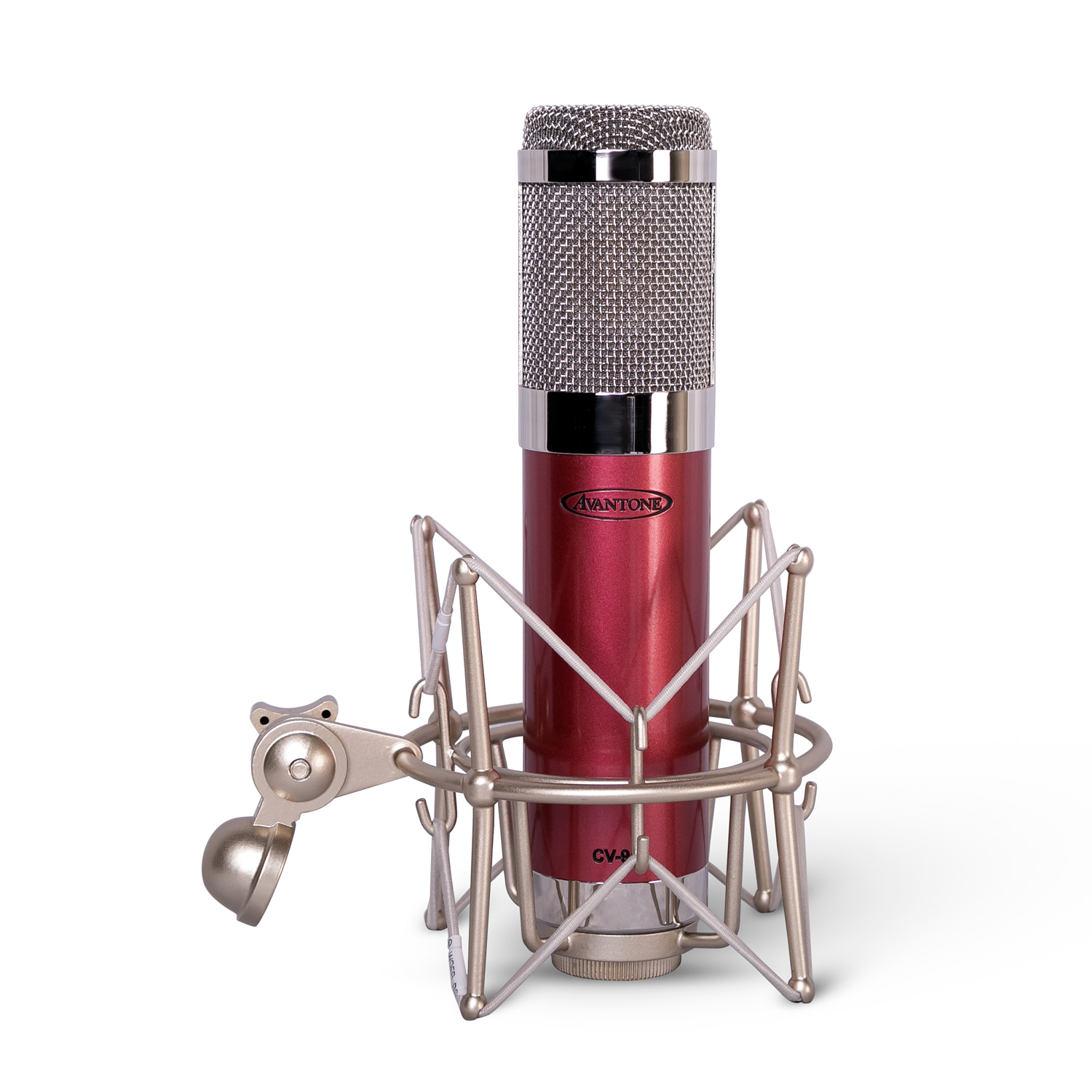

• Avantone Custom Retro Shockmount
• Avantone PS-1BV Multi-Pattern Power Supply with cables
• Foam wind screen

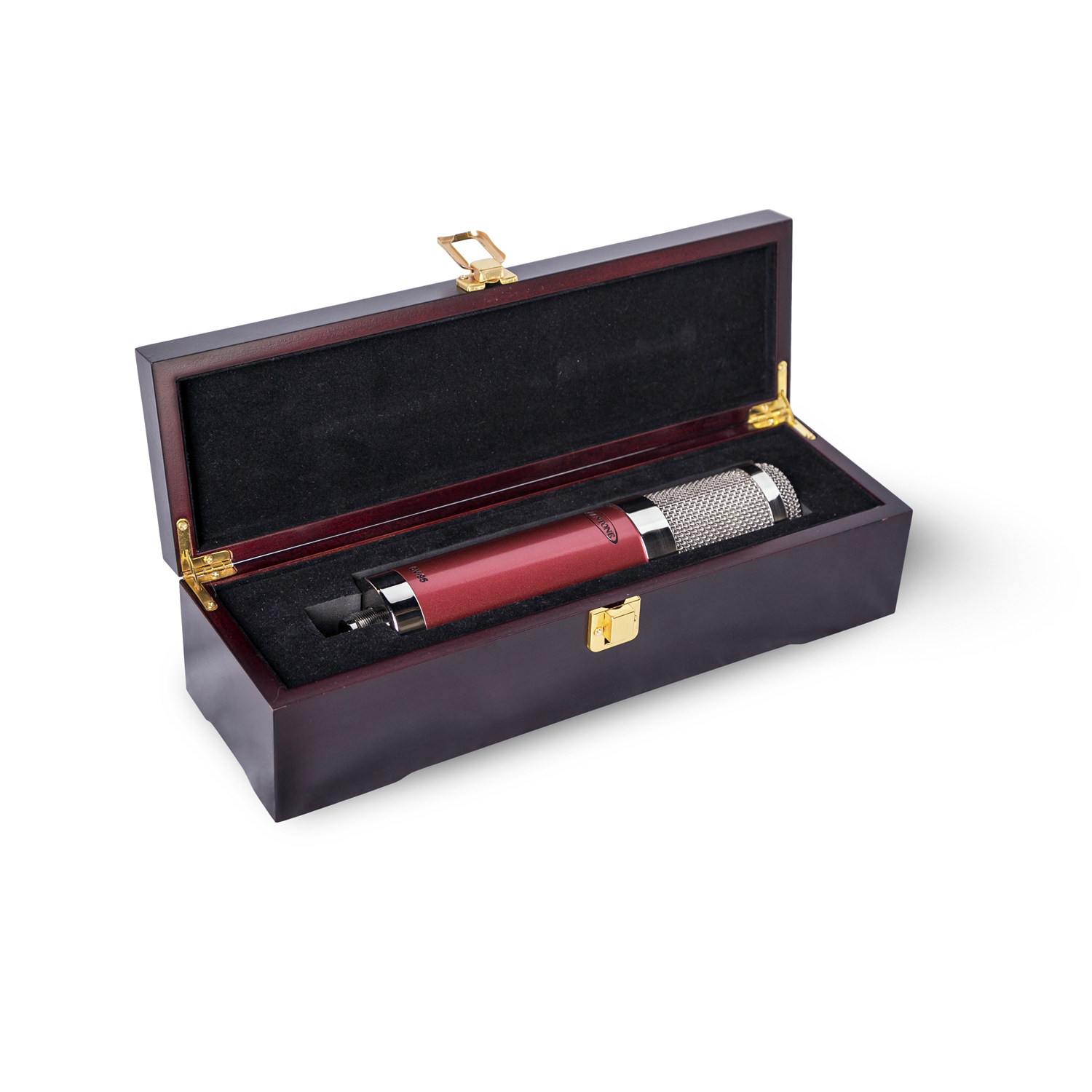

• Elegant padded genuine wooden Mic box

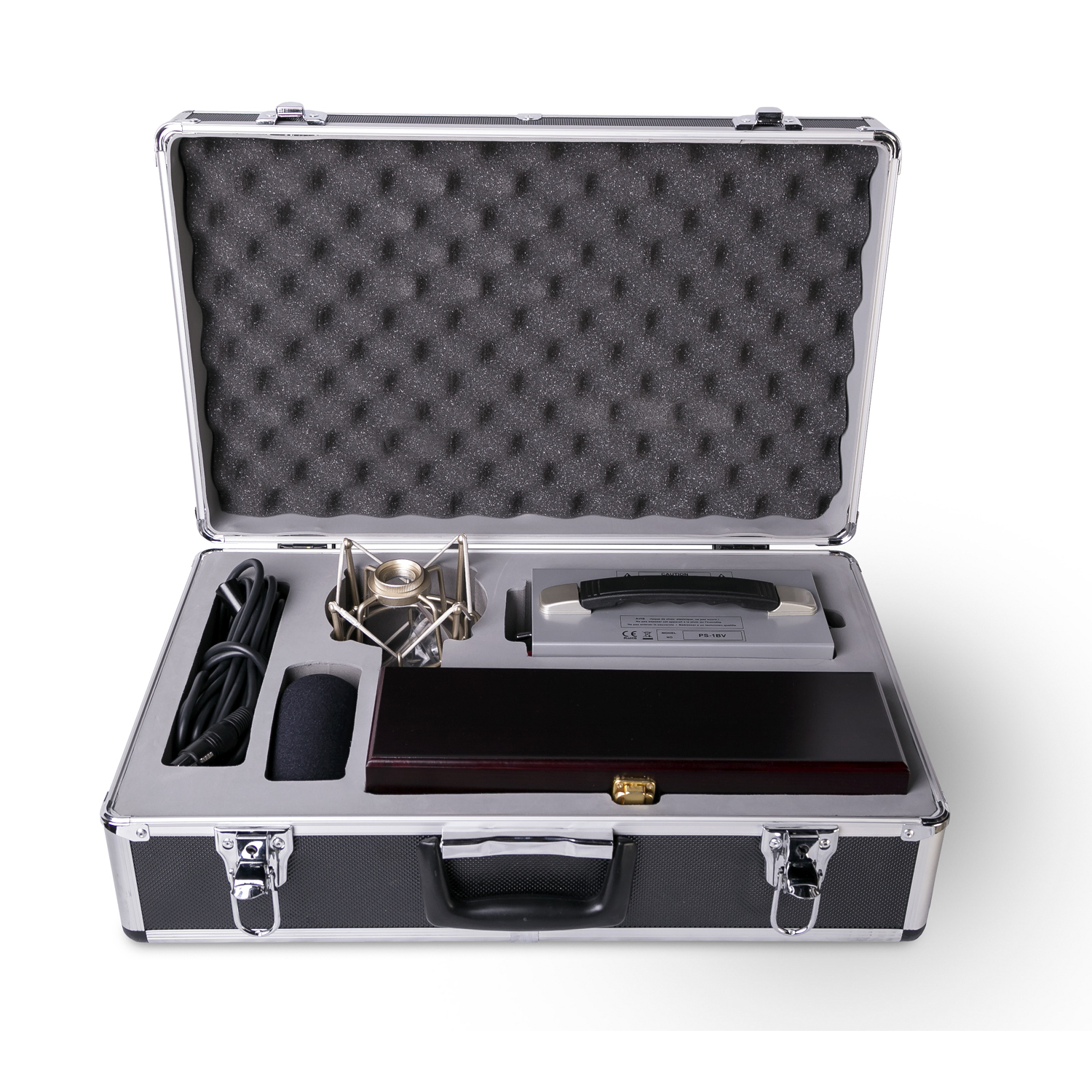

• Padded Aluminum storage / travel case
• Owner’s Manual

Type: Tube-Type True Condenser

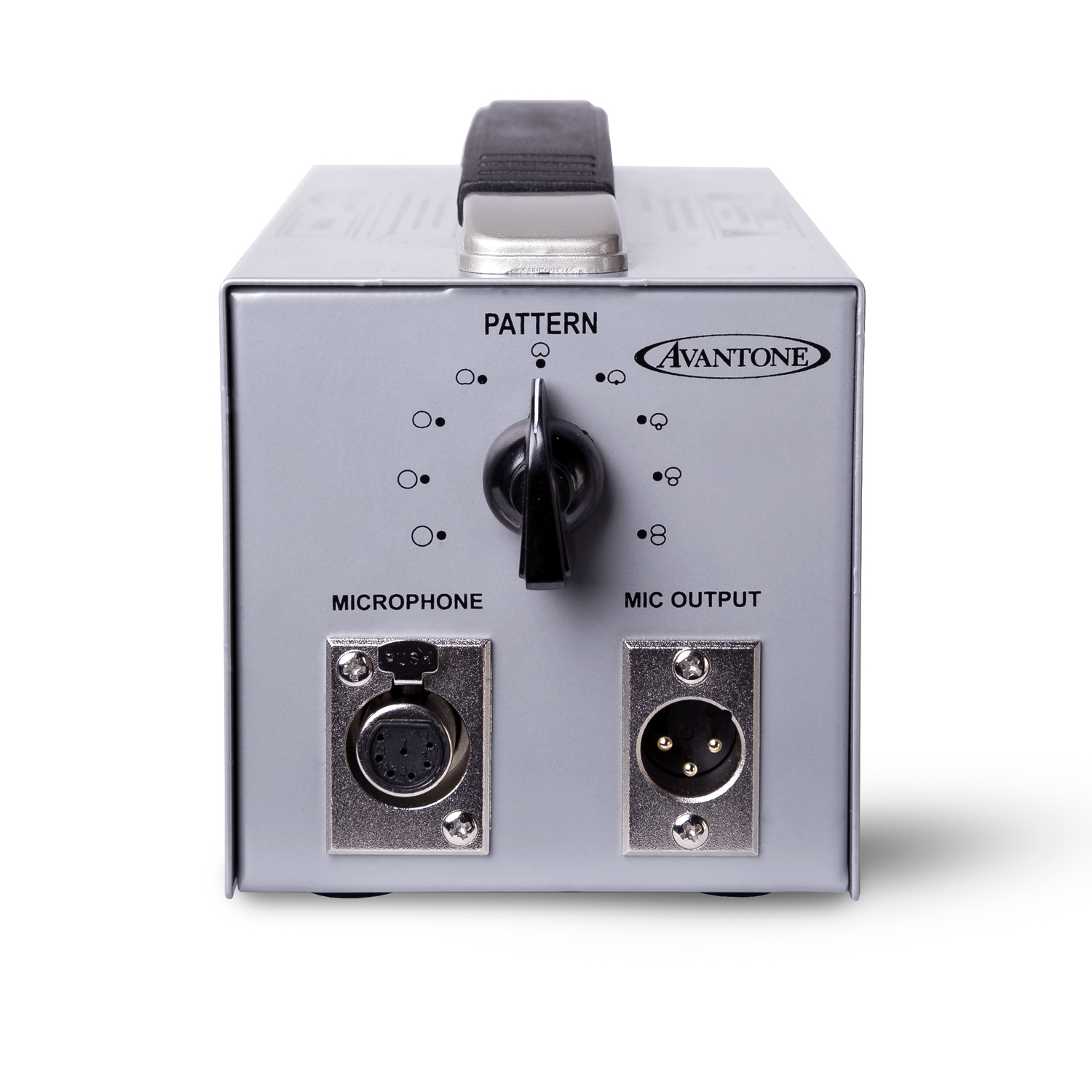

Polar Pattern(s): 9 Patterns selectable at PS-1BV Power Supply
Capsule: Dual-sided 25mm diaphragm (32mm outside diameter) center-terminated gold-sputtered Mylar (6 micron)
Frequency Response: 20-20,000Hz +/- 3dB
Output Impedance: <=250 Ohms / transformer isolated
Sensitivity: -38dB
S/N Ratio: 78dB
Noise Floor: < 17 dBA
Maximum SPL: 130dB (0.5% THD @ 1000Hz) 146dB with pad engaged
Equivalent Noise Level: 18dB (A weighted EC651)
Output Connector: Male XLR 7 pin with special PS-1BV Power Supply and cables
High-Pass Switch: 80 Hz 6dB/octave
Attenuation Switch: -10 dB

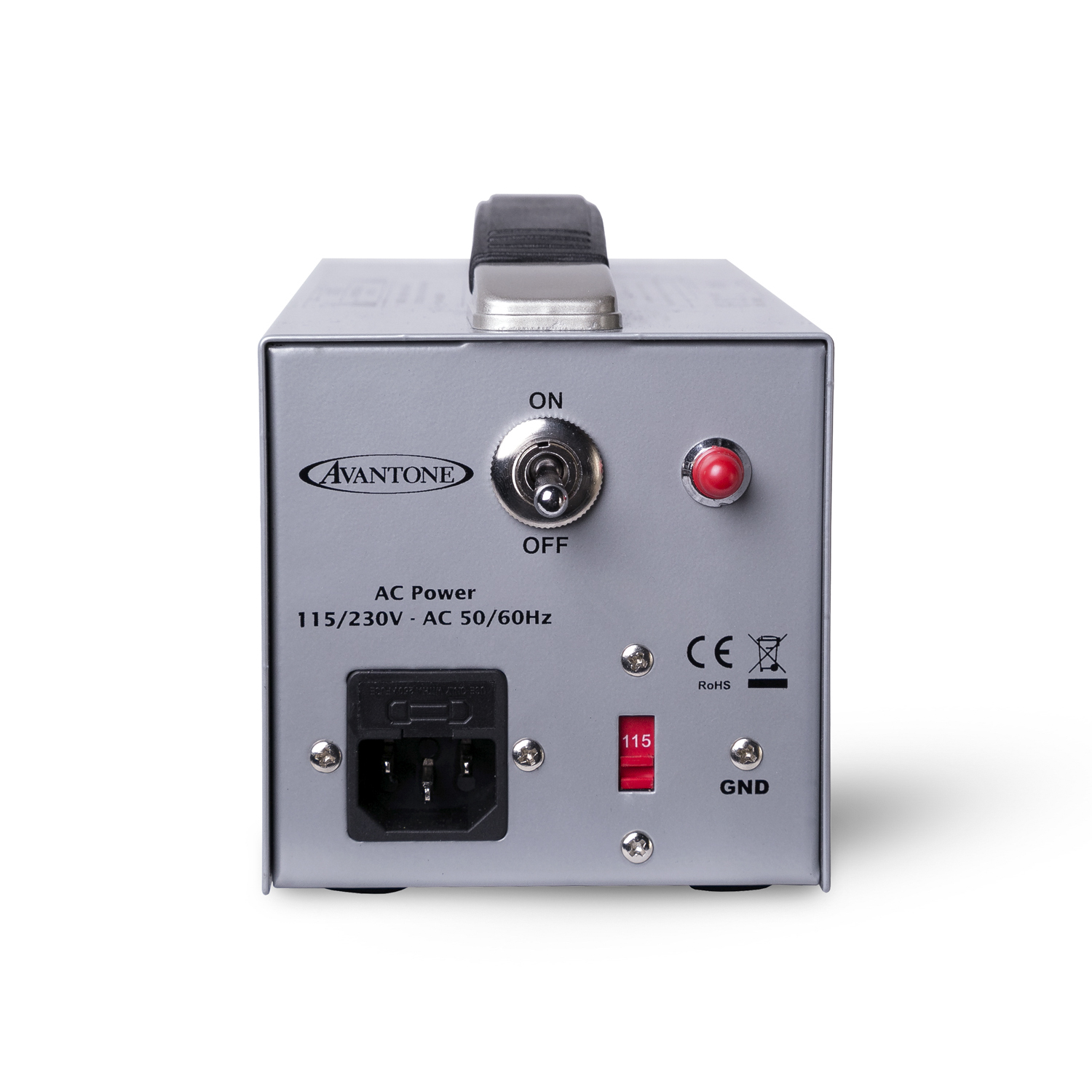

Power Requirement: Dedicated PS-1BV Power Supply, 115/230VAC selectable
Dimensions: 237mm x 46mm
Weight: 1.8 lb
Finish: Polished Nickel trim / Metallic Cabernet Red Body
