Beschrijving

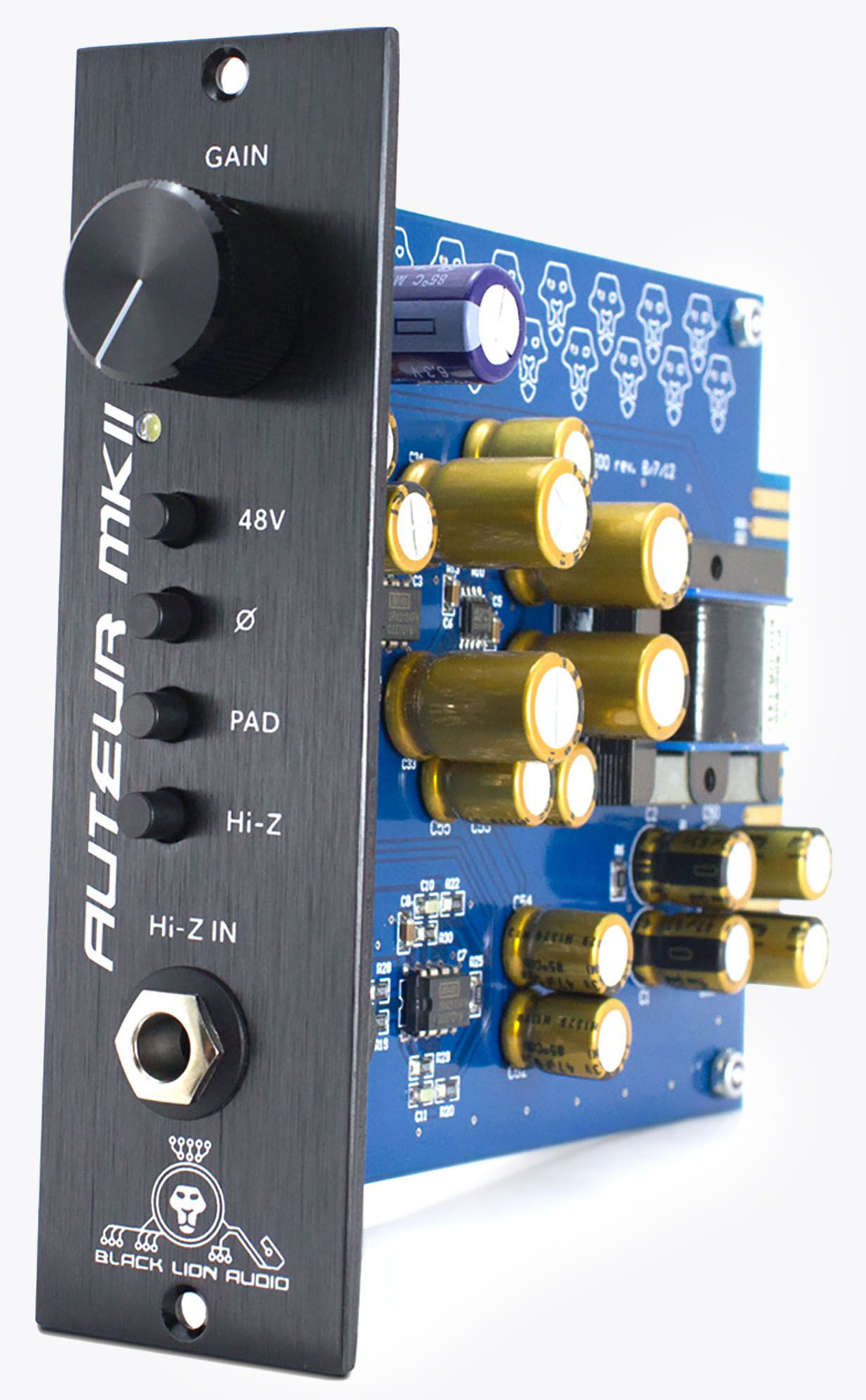

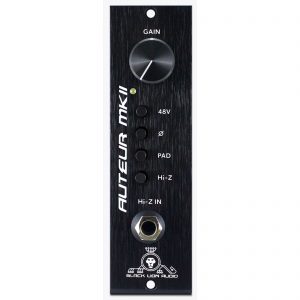

The Auteur MKII 500 is one of the most “bang for your buck” 500-series preamps in existence! You get all of the sound of the 1/2 rack version, but with the addition of a Hi-Z input! It features an ultra-fast input stage that captures lots of detail and nuance, and a signal path transformer that adds some “beef” on the way out. Once you hear the Auteur MKII 500, you’ll want to load your 500 rack full of ‘em!

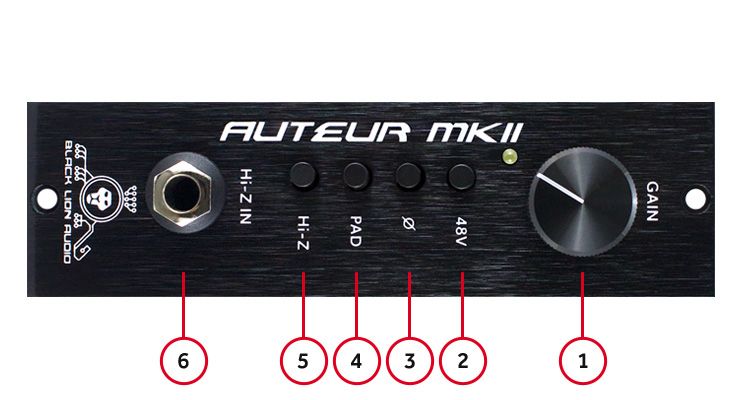

Gain: clockwise rotation yields an increase in input signal amplitude, counterclockwise rotation yields a decrease in input signal amplitude
48v: engage to turn phantom power on, disengage to turn phantom power off
Phase (Ø): engage to adjust input signal polarity by 180°, disengage to leave input signal polarity unchanged
Pad: engage to reduce input signal amplitude by 13dBu, disengage to leave input signal amplitude unchanged
Hi-Z: engage to use front panel Hi-Z IN as preamp source, disengage to use 500 rack XLR input as preamp source
Features
• 500 Series format (500 series rack required)
• Single Channel
• Ultra High-Speed Input Stage
• Edcor Output Transformer
• 67dB Gain
• Phantom Power
• Phase Switch
• 13dBu Pad
• Hi-Z Input
Mic Section
Max Microphone Input Level: +1dBu
Input Impedance: 6000O
Pad: 13dBu
Gain (no pad): +16dB to +67dB
Equivalent Input Noise (noise floor): -108dBu
THD+N (@ +4dBu output):
• .0046% @ +12dBu Gain
• .0064% @ +24dBu Gain
• .012% @ +32dBu Gain
• .028% @ +40dBu Gain
• .085% @ +50dBu Gain
• .3% @ +62dBu Gain
Bandwidth (1kHz, 600O unbalanced source, unweighted): 10Hz to 30kHz
D.I. Section
Max D.I. Input Level: +18dBu
Input Impedance Balanced: 2.2MO
Input Impedance Unbalanced: 1.1MO
Pad: 13dBu
Gain: +16dB to +67dB
Equivalent Input Noise (noise floor): -82dB
THD+N (@ +4dBu output):
• .007% @ +12dBu
• .11% @ +40dBu
Bandwidth (1kHz, 600O unbalanced source, unweighted): 10Hz to 30kHz
Output Section
Max Output Level: +28dBu
Output Impedance: 600O
Power Supply
• +/- 15v from 500 series rack
Product Dimensions
• 1.5″ x 6.5″ x 5.25″
Product Weight
• .8 lbs
Shipping Dimensions
• 13″ x 13″ x 5″
Shipping Weight
• 3 lbs
